RCS-9400FR GTX1080

产品特色

    • 工作站等级第七代英特尔® 至强®/酷睿™ i7 处理器 (Kaby Lake) 与C236芯片组
    • 英伟达2560 CUDA® 核心GeForce® GTX 1080独立显卡，英伟达® Pascal™ GPU架构，最高可支持8K分辨率
    • 3个DVI、1个HDMI与4个Displayport显示接口，最多可支持7个独立高清显示
    • 2个独立千兆网口，支持iAMT 11.0
    • 采用双通道DDR4 2133MHz高速內存，最高可支持32GB
    • 12V至36V直流输入、80V浪涌保护
    • 支持4个2.5寸硬盘抽取盒、1个CFast卡插槽
    • 3个SIM插槽，支持WiFi/3G/4G/LTE/GPRS/UMTS
    • 具2个PCI/PCIe插槽、3个Mini PCIe插槽、4个RS-232/422/485串口
    • 7个USB 3.0、32个通道隔离DIO
    • 支持电源延缓开关机设定 (车载模式)



    产品亮点

    Workstation-grade Performance

    • Workstation-grade : Intel® Xeon® processor + Intel® C236 chipset
    • NVIDIA® GeForce® GTX 1080, 8K Resolution
    • Max 1637% CPU performance improved, 49% System performance enhanced

    Versatile Expansion Functions

    • Display : 3 DVI, 1 HDMI, 4 DisplayPort, up to 7 independent HD displays
    • 3 SIM sockets support WiFi, 4G, 3G, LTE, GPRS, or UMTS
    • 4 Front-access 2.5" SSD trays, up to 8TB capacity
    • 2 PCI/PCIe expansions support multiple 10G LAN, 10G SFP+, GigE LAN, PoE+ LAN, LAN Switch, or USB 3.0
    • 7 USB 3.0, 4 COM RS-232/422/485
    • 3 Mini PCIe for PCIe/USB 3.0/SIM/mSATA

    Industrial-grade Trusted Reliability

    • All-in-one, Front-access Management
    • Industrial-grade, high-reliable Intel LAN solution
    • Optimized power supply for GPU computing
    • Smart Circuit Protection
    • Anti-shock, Anti-vibration

    Secure System Protection

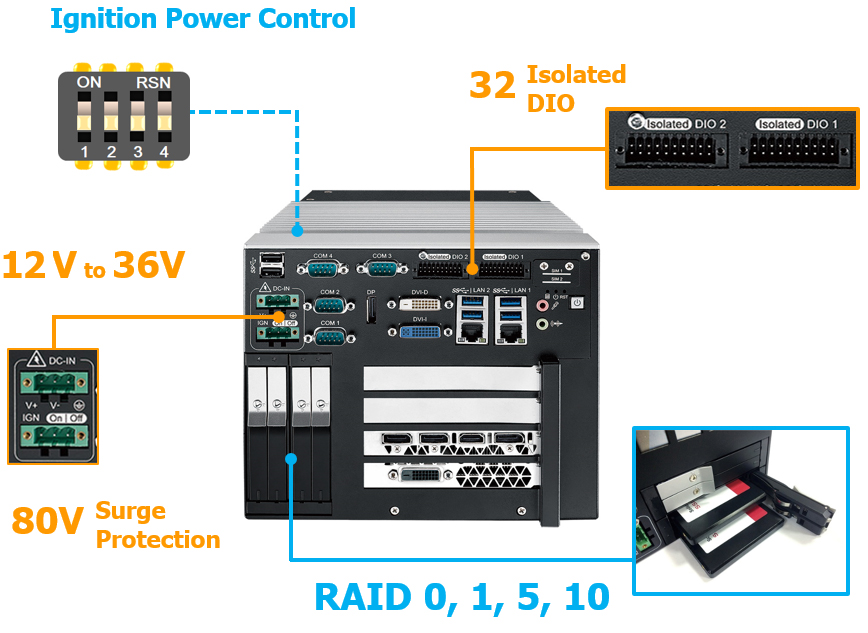

    • 10V to 36V wide range DC power input
    • 32 Isolated DIO
    • 16-mode Configurable Ignition Power Control
    • 80V Surge Protection
    • RAID 0, 1, 5, 10 Data Protection
    • iAMT 11.0, TPM 2.0, vPro

产品简介

    工作站等级第七代英特尔®至强®/酷睿™ i7 GPU芯片嵌入式系统，2560 CUDA® 核心英伟达GeForce® GTX 1080独立显卡，先进持英伟达® Pascal™架构的GPU架构，最高可支持8K分辨率，高功能整合，多样性扩充功能，前置式2.5”硬碟抽取槽、SIM插槽、PCI/PCIe插槽、USB 3.0插槽等;32个通道隔离DIO、支持12V至36V直流输入，并具备80V突波保护及智能电流防护功能，Vecow RCS-9000F GTX1080实践您在机器视觉、深度学习、智能制造、智能车载系统、智能工厂及工业4.0和物联网相关高阶嵌入式应用



产品规格

System
Processor
Quad Core Intel® Xeon®/Core™ i7 Processor
(Kaby Lake-S/Skylake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB
OS Windows 10, Windows 8.1, Windows 7, Linux
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB
- 7 USB 3.0 (6 External, 1 Internal)
- 2 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD
SIM Card  3 SIM Card Socket (2 External, 1 Internal)
Expansion
Mini PCIe
3 Mini PCIe Socket :
- 2 Full-size Mini PCIe for PCIe/USB/External SIM Card
- 1 Full-size Mini PCIe for PCIe/USB/Internal SIM Card/mSATA
PCIe Up to 2 PCIe Slot, by request
PCI Up to 2 PCI Slot, by request
Graphics
Processor
- Intel® HD Graphics 630/530
- NVIDIA® GeForce® GTX 1080
Interface
8 Display interfaces:
- 3 DVI : Up to 1920 x1200 @ 60 Hz
- 3 DisplayPort : Up to 7680 x 3840 @ 60Hz
- 1 DisplayPort : Up to 4096 x 2304 @ 60Hz
- 1 HDMI : Up to 4096 × 2160 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
- 1 CFast Socket (Internal)
- 4 2.5" SSD/HDD Tray (External)
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
Power
Power Input
35W TDP CPU : 12V to 36V, DC-in
65W/80W TDP CPU : 16V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension (W x L x H) 172mm x 330mm x 210mm (6.8" x 13" x 8.3")
Weight
RCS-9400FHR GTX1080 : 6.3 kg (13.9 lb)
RCS-9400FR GTX1080 : 5.6 kg (12.3 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature
35W TDP CPU :
- Core™ i7 : -25°C to 60°C (-13°F to 140°F)
- Xeon® E3-1268L v5 : -25°C to 60°C (-13°F to 140°F)
65W TDP CPU :
Core™ i7 : -25°C to 55°C (-13°F to 131°F)
80W TDP CPU :
Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -25°C to 45°C (-13°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 60°C
Shock IEC 60068-2-27, SSD: 50G @ wallmount, Half-sine, 11ms
Vibration IEC 60068-2-64, SSD: 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2



资源

产品 档案内容 档案类型 发布日期 下载
RCS-9400FR GTX1080 RCS-9000F GTX1080 DM (English) .PDF 2021/3/23 Download
RCS-9400FR GTX1080 RCS-9000F GTX1080 DM (简体中文) .PDF 2021/3/23 Download
RCS-9400FR GTX1080 RCS-9430FR/9430FHR GTX1080 Datasheet .PDF 2021/3/23 Download
RCS-9400FR GTX1080 RCS-9421FR/9421FHR GTX1080 Datasheet .PDF 2021/3/23 Download
RCS-9400FR GTX1080 RCS-9412FR/9412FHR GTX1080 Datasheet .PDF 2021/3/23 Download
RCS-9400FR GTX1080 RCS-9000F GTX1080 User Manual .PDF 2018/4/2 Download
RCS-9400FR GTX1080 RCS-9000 Series Driver .ZIP 2017/10/26 Download
RCS-9400FR GTX1080 RCS-9000 Series Graphics Driver (64-bit) .ZIP 2017/10/26 Download
RCS-9400FR GTX1080 RCS-9000 Series Graphics Driver (32-bit) .ZIP 2017/10/26 Download
RCS-9400FR GTX1080 GTX_Win10_64bit_01 driver .ZIP 2017/10/26 Download
RCS-9400FR GTX1080 GTX_Win10_64bit_02 driver .ZIP 2017/10/26 Download
RCS-9400FR GTX1080 GTX_Win10_64bit_03 driver .ZIP 2017/10/26 Download
RCS-9400FR GTX1080 GTX_Win10_32bit_01 driver .ZIP 2017/10/26 Download
RCS-9400FR GTX1080 GTX_Win10_32bit_02 driver .ZIP 2017/10/26 Download
RCS-9400FR GTX1080 GTX_Win7_Win8_64bit_01 driver .ZIP 2017/10/26 Download
RCS-9400FR GTX1080 GTX_Win7_Win8_64bit_02 driver .ZIP 2017/10/26 Download
RCS-9400FR GTX1080 GTX_Win7_Win8_32bit_01 driver .ZIP 2017/10/26 Download
RCS-9400FR GTX1080 GTX_Win7_Win8_32bit_02 driver .ZIP 2017/10/26 Download
RCS-9400FR GTX1080 Win10 Graphic driver (Kaby Lake) 01 .ZIP 2017/12/1 Download
RCS-9400FR GTX1080 Win10 Graphic driver (Kaby Lake) 02 .ZIP 2018/5/22 Download
RCS-9400FR GTX1080 RCS-9000 Series ME Driver .ZIP 2017/10/26 Download
